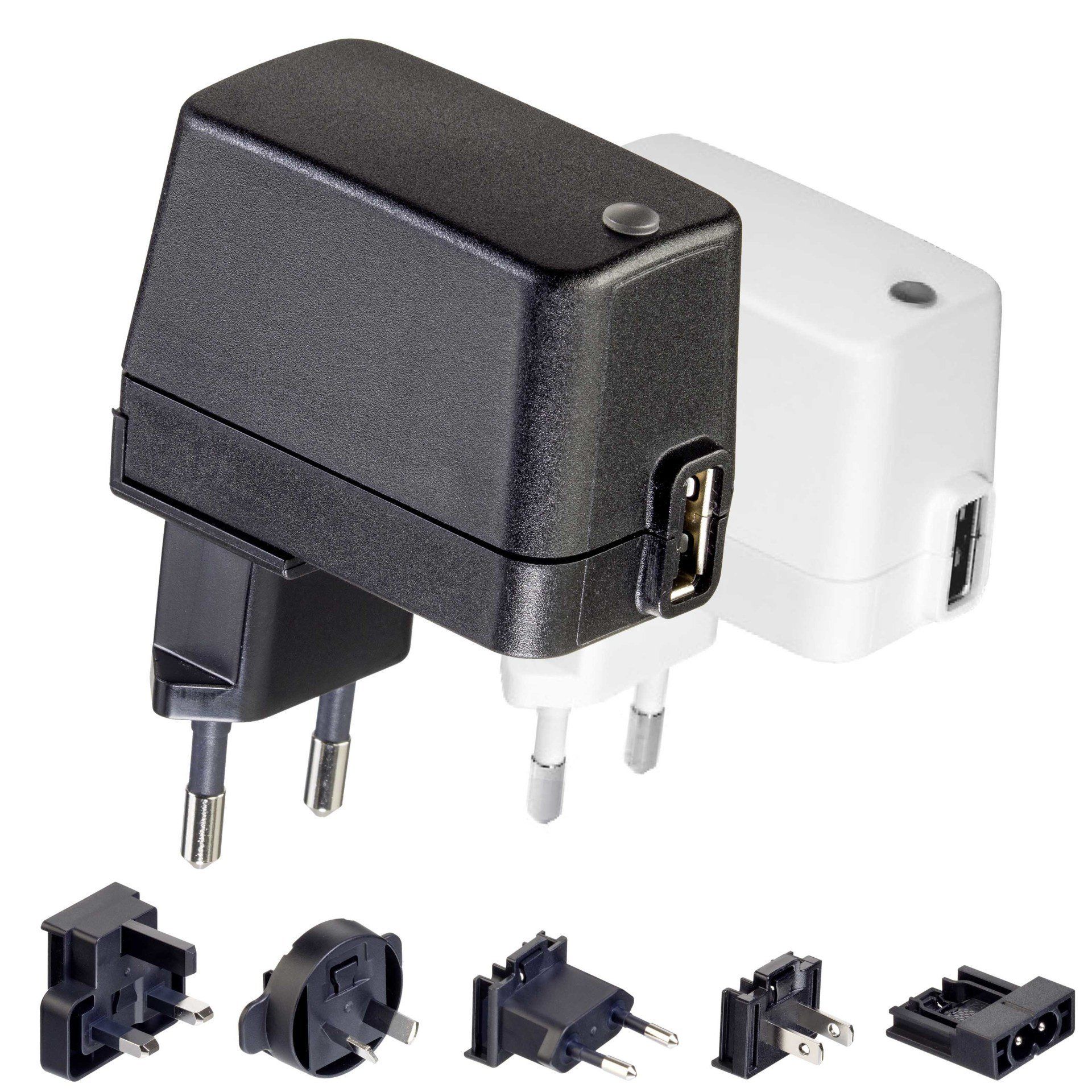

FOX6 MEDICAL EXCHANGEABLE USB

FW-Type: FW8002.1MUSB

Input Voltage: 100 - 240V AC (±10%)

Output voltage: Various (see table below)

Frequency: 50 - 60Hz

Leakage Current: ≤ 10µA

Stand-by: ≤ 0.1W

MTBF: 200,000 hours acc. Mil217F (based on calculations at 120Vac/60Hz & 230Vac/50Hz, ambient 25°C and 100% load) (The MTBF are theoretically determined values, which does not guarantee the lifetime of the product or of the electrolytic capacitors)

Operating Temperature: 0 - 40°C

Storage Temperature: -40 - 70°C

Operating Altitude: 3000m

Humidity: 10 - 95%

Standards: IEC 60950-1, IEC 60065, IEC 60335, IEC 60601-1, 2xMOPP

Approvals: EU, USA, AUS, JPN

Safety Class: II

EMC: EN 55022, EN 55024

Overload & Overvoltage protection

Continuously short circuit proof

DOE Level VI Efficiency

PSU Dimensions: 55 x 31.5 x 41 mm

Weight: 50g

Housing Flame Class: UL 94 V0

Casing: Double Safety, Snapped & Welded

Plug Connector: AC input / Interchangeable primary adapter system

DC output: Secondary adapter system

View Accessories

IP Rotection rating: IP40

Condcted and Radiated Emmisions: N55032, EN55011, FCC15, Class B, EN60601-1-2

Immunity: EN55024, EN60601-1-2

Harmonics: EN61000-3-2

Flicker noise: EN61000-3-3

ESD (contact/ air): EN61000-4-2

Immunity against radiated field: EN61000-4-3

ETF/ Burst: EN61000-4-4

Surge: EN61000-4-5

Immunity against conducted disturbances: EN61000-4-6

Voltage dips: EN61000-4-11

Immunity against magnetic field: EN61000-4-8

Drop test: Standard: IEC 60068-2-32, Surface: steel, Drop height: 1 m, Numbers of Drops (total): 3

Vibration: Standard: IEC 60068-2-6, Frequency range : 10 – 500 Hz, Cross- over-frequency : 58 – 62 Hz, Displacement amplitude : 0.2mm, Peak acceleration : 3 g, Number of cycles: 10 per axis

Required Accessories

For the operation of this device you need a primary adapter and a secondary adapter.

This can be found here: Primary adapters and Secondary adapters

SEE BELOW AVAILABLE OUTPUT ON THIS PSU...

1400 mA

FW8002.1MUSB/05

Part Number: 1960267

Button

This unit is also available with...

INDUSTRIAL GRADE

FIXED LEAD OUTPUT

FIXED PLUG
