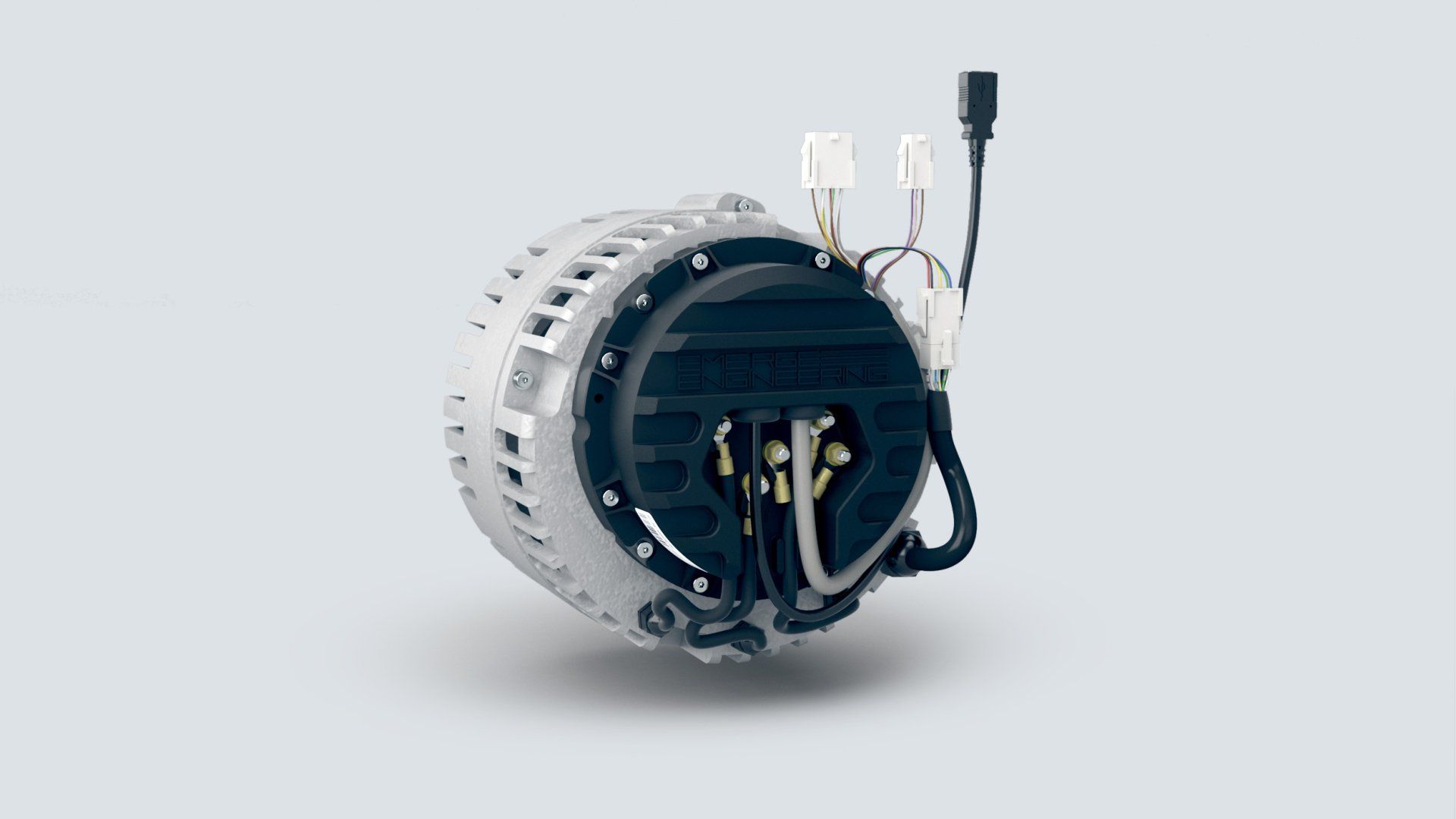

In addition to our intelligent motor control, which is also available separately and can be used with other motors, we offer complete drive units. In this case our motor control is installed directly on the motor. Together they form a perfectly matched unit for the best possible driving experience.

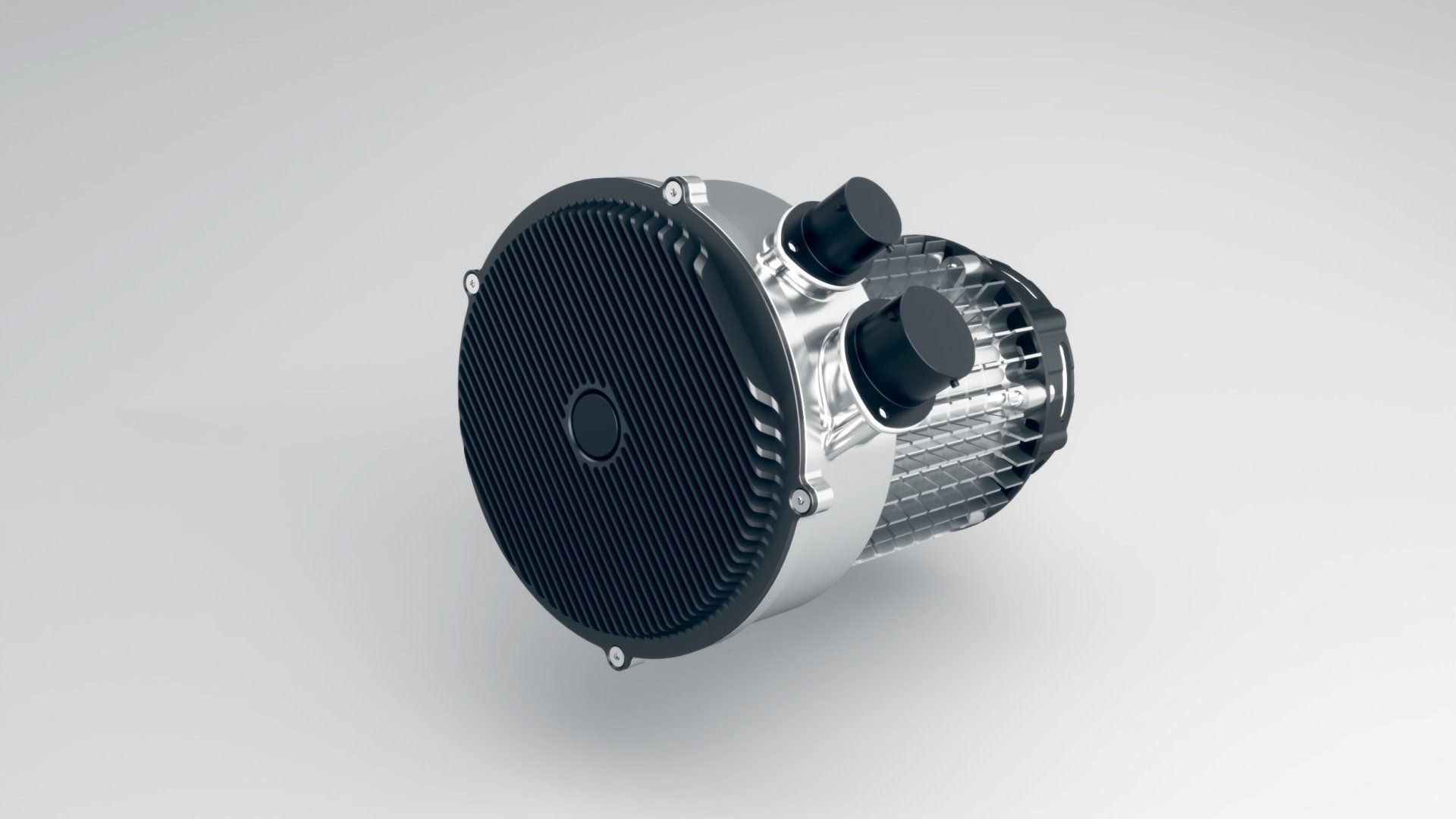

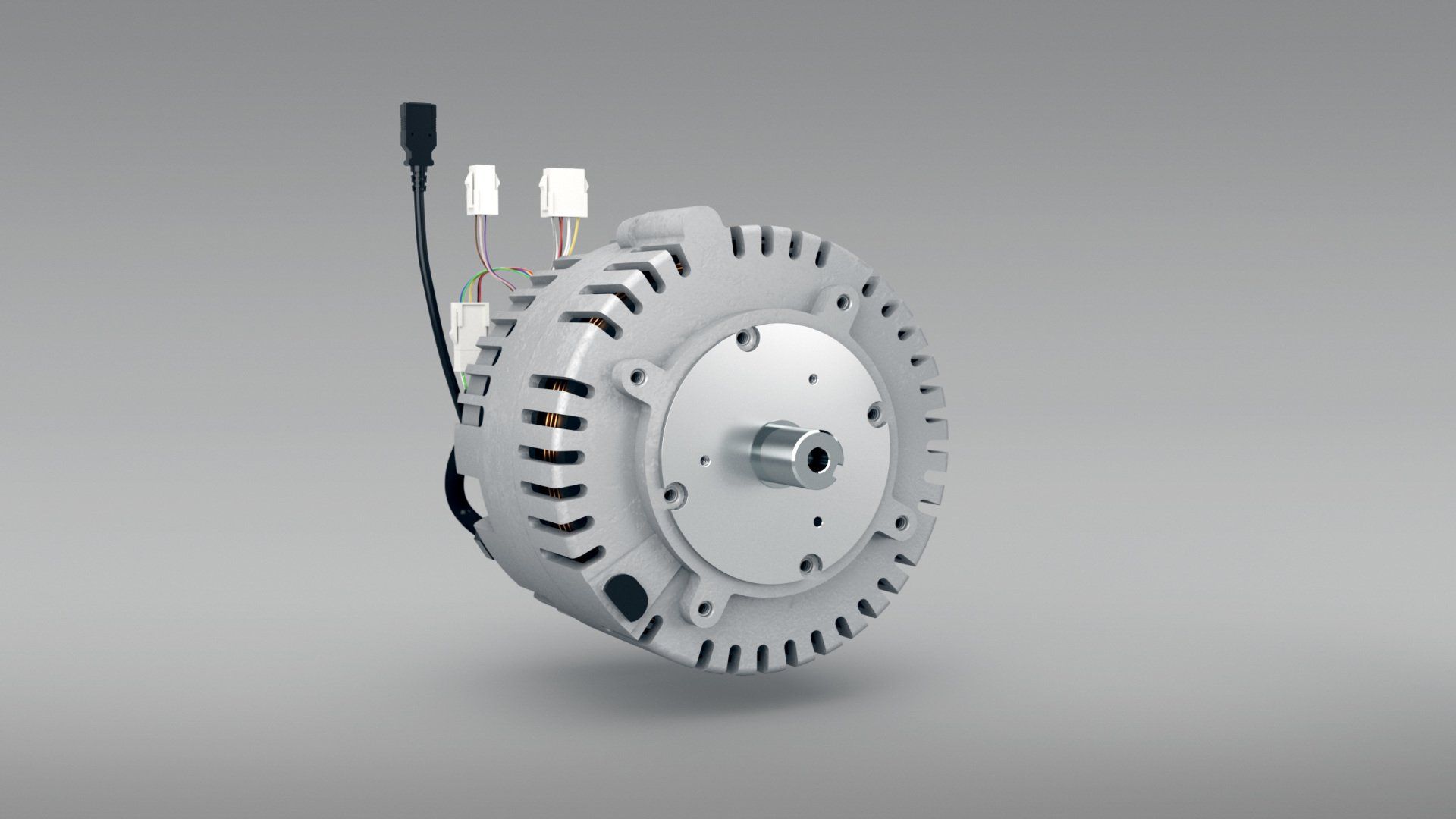

The Emerge drive unit is a powerful unit consisting of a Motenergy motor and an Emerge 6000 motor controller with a mechanical peak power of over 6.2kW. The two components are perfectly matching each other and, with a continuous output of 5kW, provide a drive unit for exciting applications.

The drive unit can be controlled either via accelerator pedal and brake or via CAN bus. Four different driving profiles and performance classes can be selected via Bluetooth for a maximum driving experience. With the optional developer license, the drive unit can be specifically adapted to the application and customer requirements.

Overview

Applications Electric scooter, go cart, golf cart, pumps, fans
Input power (el) 9kW (12PS) @ 48V
Output power (mech) 6.3kW (8.5PS)
Torque 26Nm
Shaft diameter 24mm
Speed 5000/min
Recuperation Yes
Reverse gear Yes
CAN-Bus Yes
Bluetooth Yes
Diagnostic interface USB, CAN
Weight 10.9kg
Diameter 201mm
Length 146.5mm (Motor) 52.0mm (Controller)

Downloads

Use your own Drive Unit!

With our best-in-class Motor Control

About

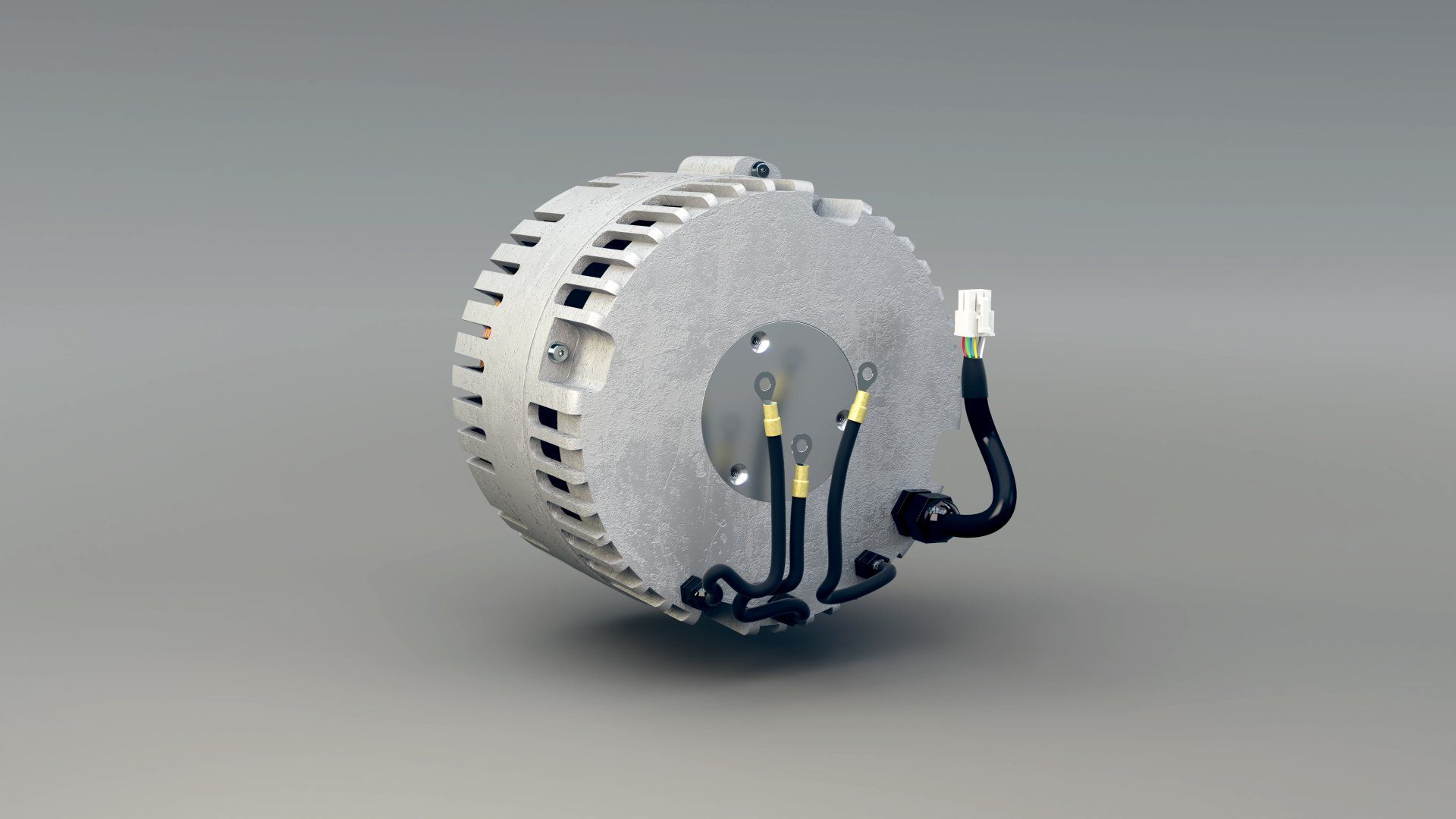

Our 5kW Motor is a good all rounder to get your project moving, additionally our Motor Controller can also be mounted directly onto it!

However, you dont have to use our motor, Thanks to the automatic teach-in function, our motor control unit forms a powerful bond with most motors within a very short time.
Then our field-oriented control with highly efficient control algorithms ensures a unique driving experience.
Get in Touch!

3rd Party Motor Support Checklist

DC Brushless Motor

Operates at 48V

3-Phase

Hall Sensors

Sends Digital Outputs

1500-6000W
