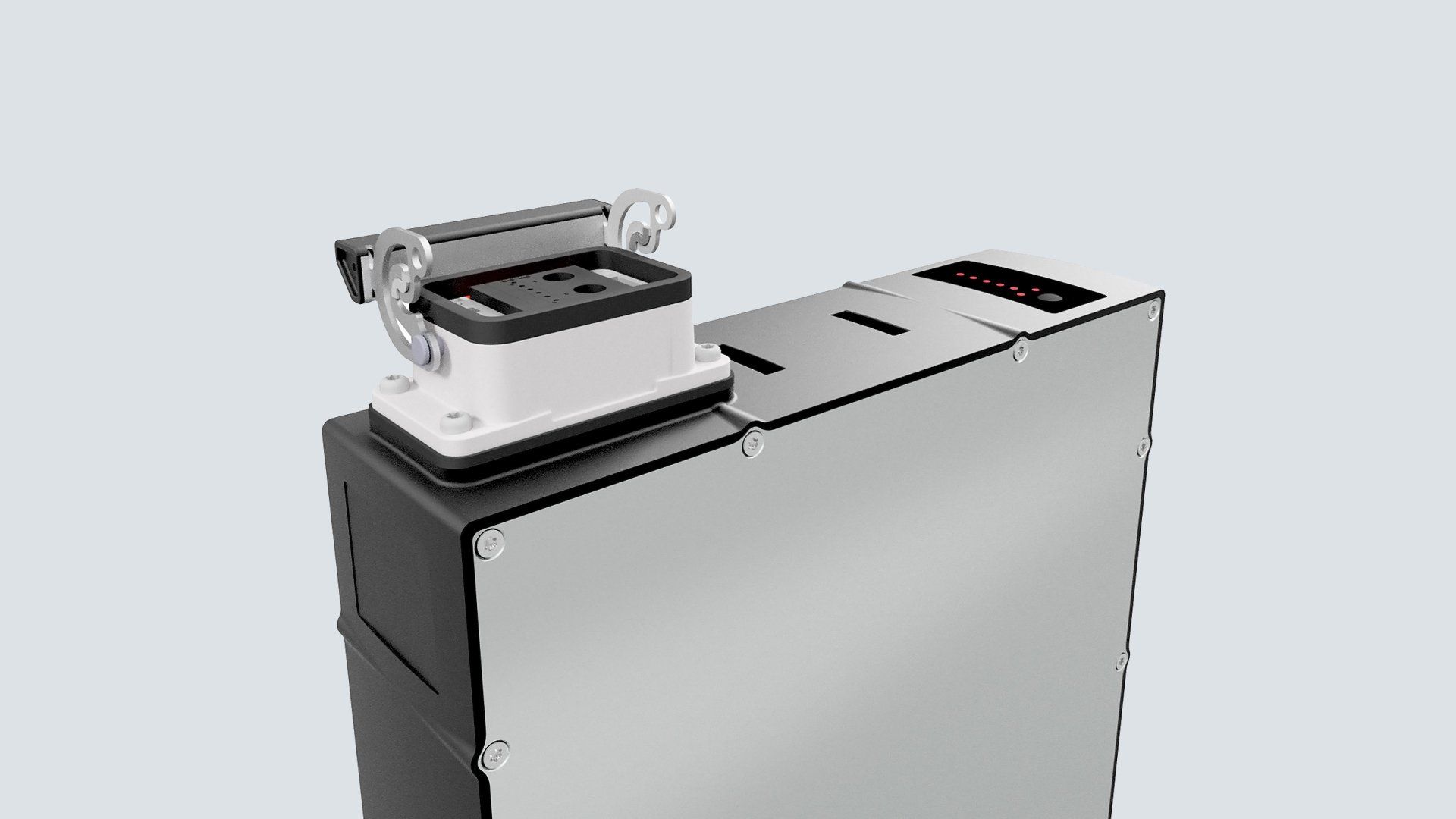

High Power 48V Li-Ion Battery Pack
14S 12P Li-Ion Battery | Peak current 180A
About
About
The High Power battery pack is based on the proven eScooter battery and has been further developed with a view to maximum performance and high durability at the same time. Samsung’s INR1865030Q high current cells enable discharge currents of up to 180A.
The BMS of the High Power battery is extended with an external power section which allows continuous currents of 140A. Stäubli’s industrial connector system guarantees a secure connection and enables the use of cable cross-sections of 16mm².
Overview
Overview
Energy | 1814Wh |
---|---|
Cell type | Samsung INR 18650 30Q |
Cell config | 14S 12P |
Nominal voltage | 50.4V |
Voltage range | 30V - 59V |
Cont. current | 140A |
Peak current | 180A |
12V output | 1.6A |
Standby | <0.1A |
Digital inputs | Keylock (Enable), Charger |
Communication | CAN-Bus |
Diagnostic interface | USB, CAN |
Dimensions | 268mm x 76mm x 378mm |
Weight | 10kg |
