500W LEV Charger

Innovative charging technology for maximum mobility



Awards

Our LEV500 lithium-ion charger has received the prestigious Red Dot Award 2022.

The competition is among the world’s largest in the field of design.


Awarding the prize in the product design category, the judges praised the unique and compact design of the LEV500. And the device not only looks good – its inner qualities are naturally just as impressive: Extremely quick charging times, low weight, and maximum user-friendliness make this innovative FRIWO product a winning proposition.

About

From our market-leading position in the field of e-bike charging technology spanning many years, we are fully aware of the requirements of an optimal power supply for light electric vehicles.

In addition to the fastest possible charging times, our products must also be as user-friendly as possible in order for the user to experience limitless electric mobility. This includes interfaces that are as easy as possible for the user to operate and also smart communication concerning the battery level. FRIWO chargers are a trusty travel companion thanks to their compact design, lowest possible weight, and extraordinary service life.

With our tailor-made products for “green” electromobility, it goes without saying that our highly efficient charging systems offer minimal standby losses. Our long-term goal is zero standby power.

As an innovative company, FRIWO is constantly exploring new types of energy supply concepts as a way of focusing on the future of electric mobility. In the field of contactless energy transfer, which could represent the charging infrastructure of the future in the long term, we have already implemented highly efficient systems with parallel data transfer.

Together we will make sure your battery receives the best possible supply – talk to us about your project!

Safety

Over voltage protection

Over current protection

Temperature protection

Linear derating of charge current above 35°C ambient temperature

Thermal battery protection via CAN

Safety standard IEC60335-1, IEC60335-2-29


Features

LED Charge Indication
IP Class 65
Convection cooling
Re-programmable via CAN communication
Wall mounting

Overview

AC Input Voltage 195 - 280 V AC
Nominal DC Output Power 500W
DC Output Voltage 50.4 - 58.8 V DC
Efficiency >90 %
Communication CAN
IP class 65
DC cable length 1.2 m

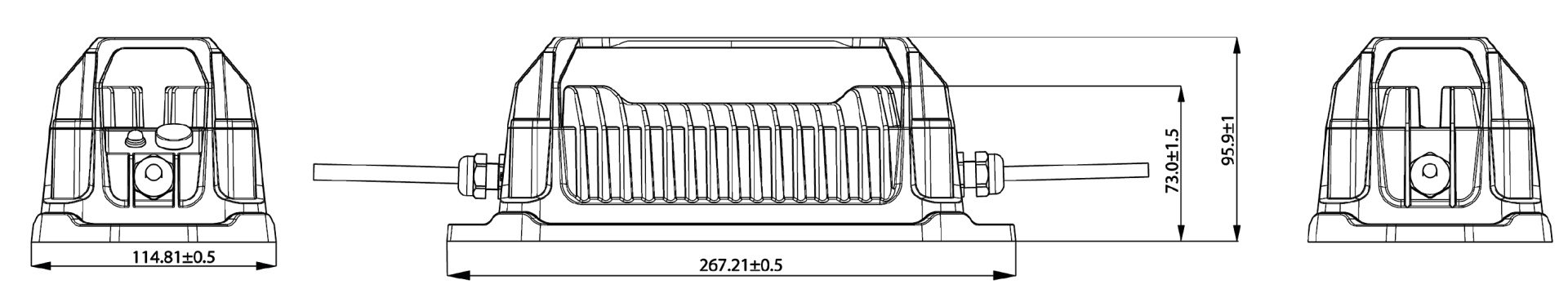

Approx. Dimensions 270L x 115W x 95H mm (-20 mm without handle)
Weight 2.5 kg
